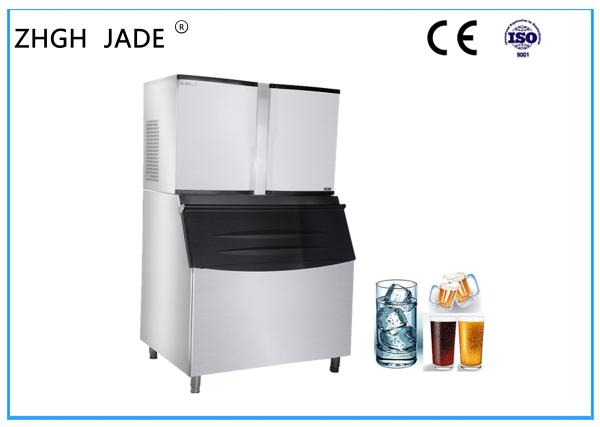

Automatic Air Cooled 1500lbs Daily Output Ice Cube Machine for
Starred Restaurant
Product Feature of Cube Ice Machine
1. Luxurious appearance with compact design; Stainless Steel 304
exterior with good anti-corrosion performance.
2. Fully automatically computer controlled, convenient for use;
3. Automatic detection and protection in case of operation, water
deficiency, ice full and malfunction;
4. Highly efficient fluoride-free compressor, energy saving and
environment-friendly;
5. Square ice cubes with beautiful shape.
6. Split-type structure, large ice bin, large ice storage capacity
and strong applicability.
Parameter of Cube Ice Machine
| Product Description | Ice Cube Machine |
| Type | ZH-1500F |
| Dimension(mm) | 1220*930*1810 with feet |
| Power(Air Cooling) | 2760W |
| Voltage | 220V/50Hz |
| Bin Capacity | 837lbs=380kgs |
| Refrigerant | R404A |
| Output | 1499lbs=680kg/24h |
| Power Plug | 10A |
Operational Environment:
► Ambient temperature:2-43℃,water temperature:2-38℃,water
pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
► The top and two sides of the machine should be at least 25cm away
from the wall, at least 12cm for the back of machine.
► The air outlet of air cooled machine should be free of
obstruction.
The maximum Daily Output is tested under:
► Room temperature of 20℃,Water temperature of 10℃.
Accessories of Cube Ice Machine
Imported compressor,increase compressor refrigeration,ice
production speed
High-efficiency copper and nickel evaporator with advanced
technology, fast ice making and fast ice receiving.
Cube ice machine is also called square ice machine, ice is
glittering and translucent, elegant appearance, automatic control,
users only need to connect water and electricity ,then it will work
immediately , high efficiency, energy saving, clean and health.
Cube ice has good melting resistance; it can be used in modulating
drinks, ice beverage, decoration and food fresh keeping and
preservation and so on. It is widely used in hotel, restaurant,
hotel, bar, banquet hall, restaurants, convenience stores and the
cold drink ship that need the ice.
Package&Shipping
Afer-sale Service
► We respect your feedback after you received the goods;
► We provide 12 months warranty for the whole unit;
► We promise all spare parts will be available during the lifetime
of the goods;
► We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before
shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during
15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
