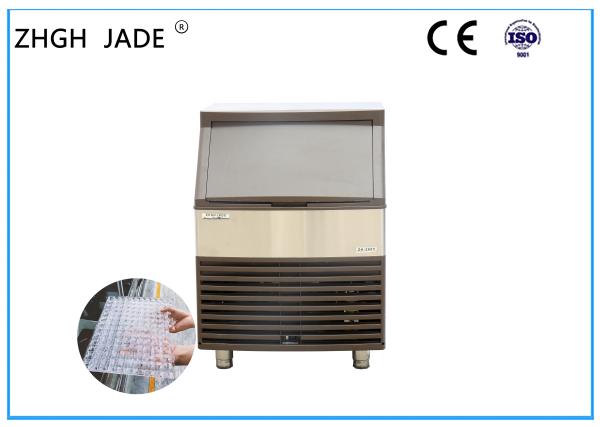

670x680x920mm Vertical Undercounter Ice Machine for Restaurants
with Dark Brown Plastic Cover
Product feature of Ice Maker Machine
1. High quality 304 stainless steel and ABS plastic, attractive
appearance,stable,practical.
2. Front air filtering device, easy to clean and extend machine
life.
3. Food safe grade ice maker.
4. Ice production of flowing water type ice maker is 10% more than
similar machines.
5. Vertical evaporator to reduce energy consumption, cooling speed
increase with large heart transfer area, very suitable fast food
restaurant, coffee shop, beverage shops and other place.
Parameter of Ice Maker Machine
| Product Description | Ice Maker Machine |
| Model | ZH-180Y |
| Dimension(L*W*H)mm | 670*680*920with feet |
| Output(lb/24hr) | 187lbs=85kgs/24h |
| Bin Capacity (lb) | 77lbs=35kgs |
| Voltage (V/Hz) | 220V/50Hz |
| Compressor | Secop |
| Power (W) | 520 |
| Condenser Unit | Air Cooling |
| Refrigerant | R404A |
| Power Plug | 10A |
Operational Environment:
► Ambient temperature:2-43℃,water temperature:2-38℃,water
pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
► The top and two sides of the machine should be at least 25cm away
from the wall, at least 12cm for the back of machine.
► The air outlet of air cooled machine should be free of
obstruction.
The maximum Daily Output is tested under:
► Room temperature of 20℃,Water temperature of 10℃.
Application of Ice Maker Machine
Cube ice machines are suitable for: high-grade cafe, high-grade
bar, private club, starred restaurant, hotel, milk tea shop,
high-grade entertainment venue,etc.
Hot Selling Products
► ZH-85Y, Max ice production:88lbs=40kgs/24h, Ice
storage:33lbs=18kgs;
Click Here:
http://www.maoyt.com/test/automatic-icemachine.com/sale-11783383-food-grade-plastic-commercial-undercounter-cube-ice-machine-with-ss-shell.html
► ZH-105Y, Max ice production:110lbs=50kgs/24h, Ice
storage:44lbs=20kgs;
Click Here:
http://www.maoyt.com/test/automatic-icemachine.com/sale-11795791-50kgs-24h-output-commercial-undercounter-cube-ice-maker-machine-for-cooling-drinks.html
► ZH-220Y, Max ice production:220lbs=100kgs/24h, Ice
storage:77lbs=35kgs;
Click Here:
http://www.maoyt.com/test/automatic-icemachine.com/sale-11800767-ss304-under-counter-ice-machine-commercial-ice-cube-maker-0-13-0-55mpa.html
► ZH-260Y, Max ice production:260lbs=118kgs/24h, Ice
storage:77lbs=35kgs;
Click Here:http://www.maoyt.com/test/automatic-icemachine.com/sale-11801919-secop-compressor-undercounter-ice-cube-machine-670-680-920mm-50hz.html
► ZH-320F, Max ice production:319lbs=145kgs/24h, Ice
storage:264lbs=120kgs;
Click Here:http://www.maoyt.com/test/automatic-icemachine.com/sale-11784313-silver-exterior-surface-ice-cube-maker-machine-large-ice-capacity-ss304-shell.html
► ZH-400F, Max ice production:396lbs=180kgs/24h, Ice
storage:308lbs=140kgs;
Click Here:http://www.maoyt.com/test/automatic-icemachine.com/sale-11809068-split-type-square-ice-cube-machine-commercial-ice-making-machine-720w.html
► ZH-500F, Max ice production:507lbs=230kgs/24h, Ice
storage:374lbs=170kgs;
Click Here:http://www.maoyt.com/test/automatic-icemachine.com/sale-11809266-r404a-refrigerant-ice-cube-maker-machine-170kg-bin-capacity-220v-50hz.html
► ZH-600F, Max ice production:595lbs=270kgs/24h, Ice
storage:374lbs=170kgs;
Click Here:http://www.maoyt.com/test/automatic-icemachine.com/sale-11809686-energy-efficient-ice-cube-maker-machine-with-food-grade-ice-bucket-880w.html
Inner Components And Country of Origin
1. Compressor—Germany SECOP, USA Copeland;
2. Expansion Valve—Denmark Danfoss;
3. Defrost Solenoid Valve—Japan Saginomiya;
4. Condenser Fan—Germany EBM.
► Leading technology in the copper - nickel evaporation tray,
making ice fast, ice falling rapidly,saving time and saving
electricity;
► Reasonable increase of evaporation area, both to ensure full
yield, and improve the quality of ice;
► Microcomputer detection system, no need for special operation,
safe and reliable use;
► The scientific configuration of the condensing system and the
condensing temperature sensing device can adapt to different
ambient temperatures;
► The storage ice bucket adopts PE integral rolling plastic
process, which fully conforms to the national food grade access
standard, and the thickened foaming layer is for excellent ice
storage;
► Selecting the world famous parts, long service life, high
efficiency and energy saving;
► Hexahedral ice, with large contact surface, allows rapid cooling
of ice products;
► Stainless steel shell is luxury generous, easy to clean, and
durable.
Warehouse
► We have enough space for raw materials, semi-finished products and
finished products;
► We will arrange the products of each customer and deliver them on
time;
► We will scientifically arrange the stock of conventional ice-making
machines to ensure the delivery of conventional products within 72
hours.
Package&Shipping
Package will be Cardboard Carton, Plywood Box, Pallet or as
requested;
We have a team that works hard and they are vigorous, they always
deliver products on time;
Afer-sale Service
►We respect your feedback after you received the goods;
►We provide 12 months warranty for the whole unit;
►We promise all spare parts will be available during the lifetime
of the goods;
►We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before
shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during
15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
