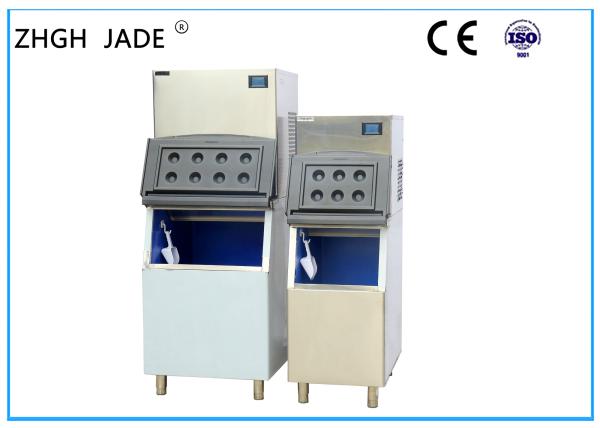

Water Cooling 992lbs/day Output Cube Ice Maker for Hotel with SS304
Shell
Product Feature
Luxurious appearance with compact design; Stainless Steel 304
exterior with good anti-corrosion performance; Automatic detection and protection in case of operation, water
deficiency, ice full and malfunction; Split type structure, large
ice bin, large ice storage capacity and strong applicability;
Oversized roll-molded ice storage barrel liner, anti-pressure and
wear-resistant to prevent the growth of harmful bacteria,to ensure
the safety and health of ice. Oversized roll-molded ice storage
barrel liner, anti-pressure and wear-resistant to prevent the
growth of harmful bacteria,to ensure the safety and health of ice.
Parameter
| Type | ZH-1000F |
| Dimension(mm) | 760*820*1910 with feet |
| Power(Water Cooling) | 1280W |
| Voltage | 220V/50Hz |
| Bin Capacity | 374lbs=170kg |
| Refrigerant | R404A |
| Output | 992lbs=450kg/24h |
| Power Plug | 10A |
Water Cooled Ice Cube Machine
Using the water cooling principle to cool the compressor, the
displacement is larger than the air-cooled model, but the ice
making speed is fast, not affected by ventilation and environmental
temperature, the machine operation noise is low, no matter how high
temperature can maintain normal, stable ice.
Operational Environment:
► Ambient temperature:2-43℃,water temperature:2-38℃,water
pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
► The top and two sides of the machine should be at least 25cm away
from the wall, at least 12cm for the back of machine.
► The air outlet of air cooled machine should be free of
obstruction.
The maximum Daily Output is tested under:
► Room temperature of 20℃,Water temperature of 10℃.
Applications
Cube ice machine is suitable for:
high-grade cafe, high-grade bar, private club, starred restaurant,
hotel, milk tea shop, high-grade entertainment venue.
Afer-sale Service
► We respect your feedback after you received the goods;
► We provide 12 months warranty for the whole unit;
► We promise all spare parts will be available during the lifetime
of the goods;
► We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before
shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during
15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
