Water Cooling 507lbs Daily Output Ice Cube Machine for Private Club
Product Features of Automatic Ice Maker
1. High-efficiency copper and nickel evaporator with advanced
technology, fast ice making and fast ice receiving
2. To increase the evaporator area and the number of ice plates
reasonably, that is, to ensure sufficient ice production, but also
to ensure the quality of ice
3. Microcomputer control technology, water intake, drainage, ice
production, ice drop automatic, no manual operation, safe and
reliable use,
4. The scientific configuration of condensing system and condensing
temperature sensor can adapt to different working conditions, save
energy and save electricity
5. The ice storage bucket adopts the whole foaming process without
fluoride polyamine lipids, which has efficient thermal insulation
Parameter of Automatic Ice Maker

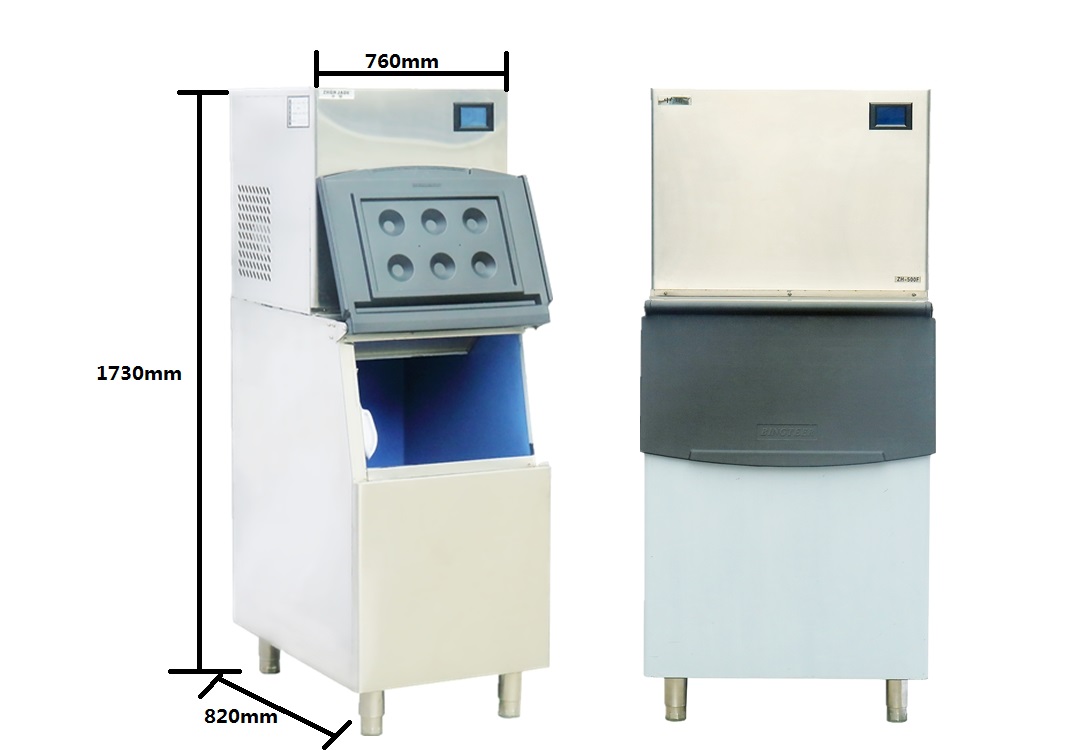

| Type | ZH-500F |
| Dimension(mm) | 760*820*1730 with feet |
| Power(Water-cooling) | 820W |
| Voltage | 220V/50Hz |
| Bin Capacity | 374lbs=170kg |
| Refrigerant | R404A |
| Output | 507lbs=230kg/24h |
| Power Plug | 10A |
Water Cooled Ice Cube Machine
Using the water cooling principle to cool the compressor, the
displacement is larger than the air-cooled model, but the ice
making speed is fast, not affected by ventilation and environmental
temperature, the machine operation noise is low, no matter how high
temperature can maintain normal, stable ice.
Operational Environment:
►Ambient temperature:2-43℃,water temperature:2-38℃,water
pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
►The top and two sides of the machine should be at least 25cm away
from the wall, at least 12cm for the back of machine.
►The air outlet of air cooled machine should be free of
obstruction.
The maximum Daily Output is tested under:
►Room temperature of 20℃,Water temperature of 10℃.
The thickness of ice can be adjustable and using convenient to meet
different customer requirement.
Note: different temperatures, specific ice making time and output
are different. The above data are from the laboratory data of zhongjun, with
errors.
Applications of Automatic Ice Maker
Cube ice machine is suitable for:
high-grade cafe, high-grade bar, private club, starred restaurant,
hotel, milk tea shop, high-grade entertainment venue.

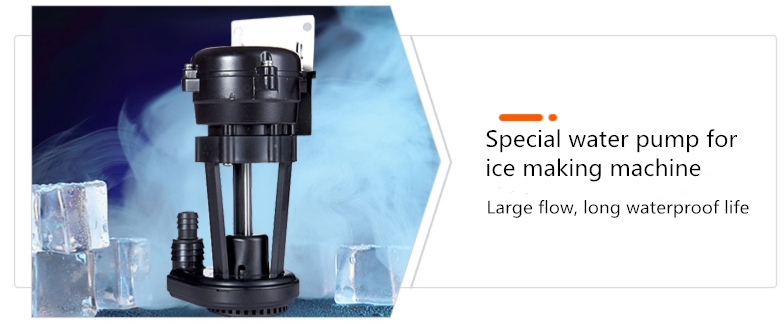

Accessories of Automatic Ice Maker
Exhibition
Besides our Chinese domestic market, we are trying to develop other
markets around the world. Our products are widely used in
high-grade cafe,high-grade bar, private club, starred restaurant,
hotel, milk tea shop, hight-grade entertainment venue, ect.Our
service covers product analysis, project consultation,
manufacturing follow-up, exporting and after sales services.
Package&Shipping
Afer-sale Service
►We respect your feedback after you received the goods;
►We provide 12 months warranty for the whole unit;
►We promise all spare parts will be available during the lifetime
of the goods;
►We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before
shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during
15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
