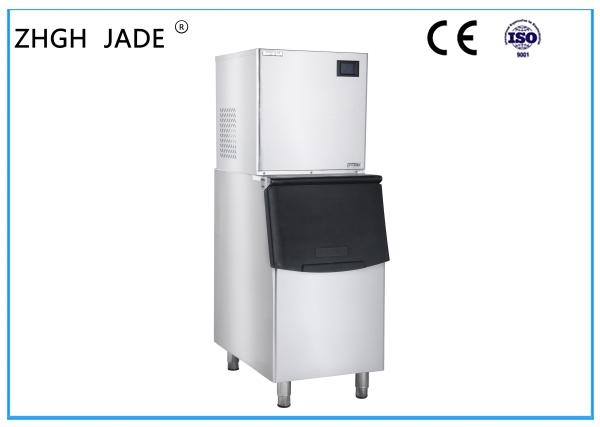

Air Cooling Split-type Ice Machine with 319lbs Daily Output for
Coffee Shop
Air Cooled Ice Cube Machine
Using the cooling principle of fans, the ice making speed is
greatly affected by the environment, and the fan operation is
louder than water cooling. But do not need to use water cooling,
relatively save water and energy.
Parameter
| Type | ZH-320F |
| Dimension(mm) | 560*820*1630 with feet |
| Power(Air Cooling) | 780W |
| Voltage | 220V/50Hz |
| Bin Capacity | 264lbs=120kg |
| Refrigerant | R404A |
| Output | 319lbs=145kg/24h |
| Power Plug | 10A |
Operational Environment:
► Ambient temperature:2-43℃,water temperature:2-38℃,water
pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
► The top and two sides of the machine should be at least 25cm away
from the wall, at least 12cm for the back of machine.
► The air outlet of air cooled machine should be free of
obstruction.
The maximum Daily Output is tested under:
► Room temperature of 20℃,Water temperature of 10℃.
Applications
Cube ice machine is suitable for:
high-grade cafe, high-grade bar, private club, starred restaurant,
hotel, milk tea shop, high-grade entertainment venue.
The thickness of ice can be adjustable and using convenient to meet
different customer requirement.The thickness of ice can be
adjustable and using convenient to meet different customer
requirement.
Accessories
► Leading technology in the copper - nickel evaporation tray,
making ice fast, ice falling rapidly,saving time and saving
electricity;
► Reasonable increase of evaporation area, both to ensure full
yield, and improve the quality of ice;
► Microcomputer detection system, no need for special operation,
safe and reliable use;
► The scientific configuration of the condensing system and the
condensing temperature sensing device can adapt to different
ambient temperatures;
► The storage ice bucket adopts PE integral rolling plastic
process, which fully conforms to the national food grade access
standard, and the thickened foaming layer is for excellent ice
storage;
► Selecting the world famous parts, long service life, high
efficiency and energy saving;
► Hexahedral ice, with large contact surface, allows rapid cooling
of ice products;
► Stainless steel shell is luxury generous, easy to clean, and
durable.
Exhibition
Besides our Chinese domestic market, we are trying to develop other
markets around the world. Our products are widely used in
high-grade cafe,high-grade bar, private club, starred restaurant,
hotel, milk tea shop, hight-grade entertainment venue, ect.Our
service covers product analysis, project consultation,
manufacturing follow-up, exporting and after sales services.
Afer-sale Service
► We respect your feedback after you received the goods;
► We provide 12 months warranty for the whole unit;
► We promise all spare parts will be available during the lifetime
of the goods;
► We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before
shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during
15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
